The EVA-22S-SE-RFID is a next-generation 22kW EV charge point designed for home charging and backed by a market-leading five-year warranty. With a compact design, and an option to mount on a post if required this charger can be sited almost anywhere.
(UK Mainland only)

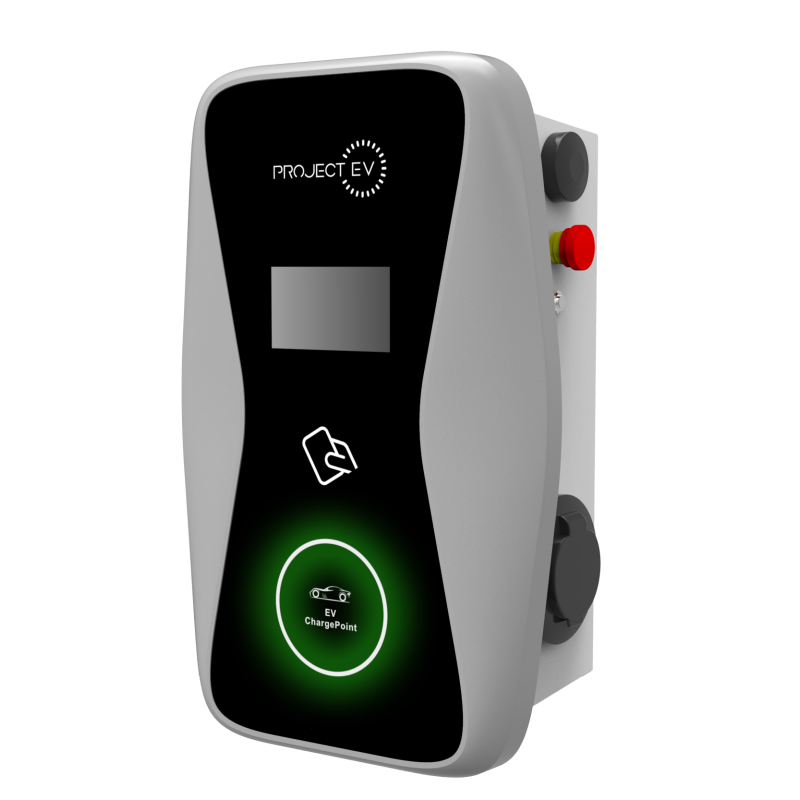

The EVA-22S-SE-RFID is a next-generation, three-phase, single-socket AC charging unit.
Built-in earthing arrangement means no costly groundwork, holes in driveways, additional mess or costly earth spike installation
Incredible price for a 22 kW unit with a five-year warranty
Mobile app for simple monitoring
Compact design with the option to mount on the wall or a post
The EVA-22S-SE-RFID charger is a high-quality, 22 kW, consumer electric vehicle charging solution.
We can arrange for a fully accredited installation and the OLEV grant to give you complete peace of mind.
The EVA-22S-SE-RFID is safe for both you and your vehicle. A key feature of these chargers is that the cable is only live when charging, greatly reducing the risk of injury in the case of cable damage.
Built to last, the EVA-22S-SE-RFID is rated IP65 for water and dust ingress and has been approved for both indoor and outdoor installations and year-round use.
This charger is made of high-quality materials to exacting standards, that is why this is one of the only chargers on the market with a full 5-year warranty.
Manufacturer Part Number: EVA-22S-SE-RFID
| Input Voltage | 415v AC |
| Input Current | 32A (max) |
| Output Voltage | 400v AC |
| Output Power | 22kW |
| Socket Type | IEC 62196 Type 2 connector |
| Number of sockets | 1 |
| Charging Mode |
Mode 3 |
| OCPP compliance | 1.6 |
| WiFi Enabled | Yes |
| Wired Networking (Ethernet) | Yes |
| Mobile Network Connectivity | Optional |
| Width | 300mm |
| Height | 465mm |
| Depth | 170mm |
| Electrical Phases Required | Three Phase |
| Operating Temperature | -20°C to +50°C |
| Ingress protection rating | IP65 |
The EVA-22S-SE-RFID is a next-generation 22kW EV charge point designed for home charging and backed by a market-leading five-year warranty. With a compact design, and an option to mount on a post if required this charger can be sited almost anywhere.
